C-D exhaust duct

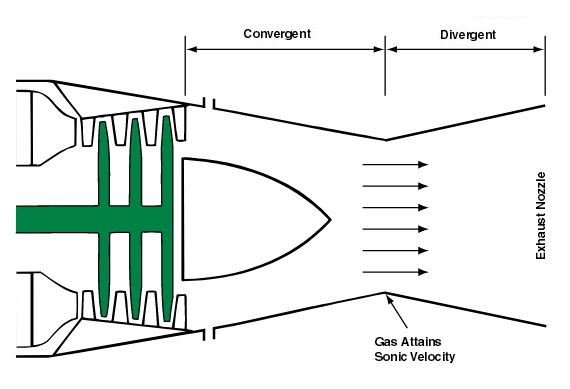

An exhaust duct used on the engine of a supersonic aircraft. The cross-sectional area of the duct decreases in the direction of the gas flow until it is small enough that the gases passing through this area travel at the speed of sound. Beyond this point of minimum area, the duct enlarges so the gases can be further speeded up above the speed of sound.
