Catapult

توضیح فارسی

منجنیق، وسیله پرتاب، پرتابگر هواپیما که روی عرشه ناوهای هواپیمابر وجود دارد  ،وسیله ای که با آن هواپیما را از روی عرشه کشتی به پرواز درمی آورند. که تشکیل شده از یک یا دو عمل کننده پیستونی که طول آنها تقریباً به اندازه طول عرشه ناو است و پیستونها دارای زبانه هایی است که از شکافی روی سطح عرشه بیرون آمده و توسط یک رابط به هواپیما وصل میشود.
در گذشته عامل محرک پرتابگرها عُمدتاً نیروی بخار بود ولی به تازگی در پرتابگرهای جدید استفاده از نیروی الکترو مغناطیس تحت بررسی و آزمایش قرار گرفته است.

Description

A mechanism used to hurl, or launch, an object at a high rate of speed. catapults are used to launch heavily loaded aircraft from the decks of aircraft carriers.

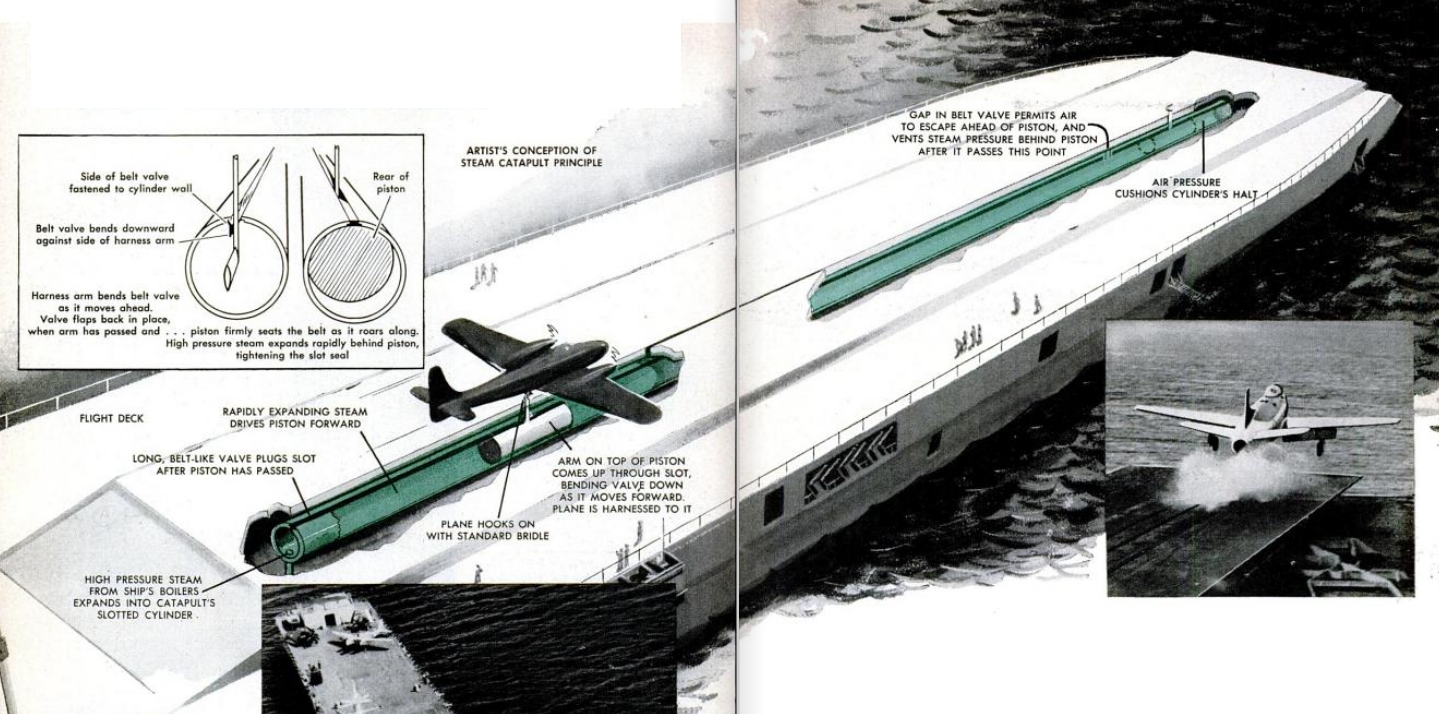

An aircraft catapult is a device used to launch aircraft from ships, most commonly used on aircraft carriers, as a form of assisted take off. It consists of a track built into the flight deck, below which is a large piston or shuttle that is attached through the track to the nose gear of the aircraft, or in some cases a wire rope, called a catapult bridle, is attached to the aircraft and the catapult shuttle. Different means have been used to propel the catapult, such as weight and derrick, gunpowder, flywheel, air pressure, hydraulic, and steam power. The producers are developing the use of Electromagnetic Aircraft Launch Systems with the construction of the new aircraft carriers.
