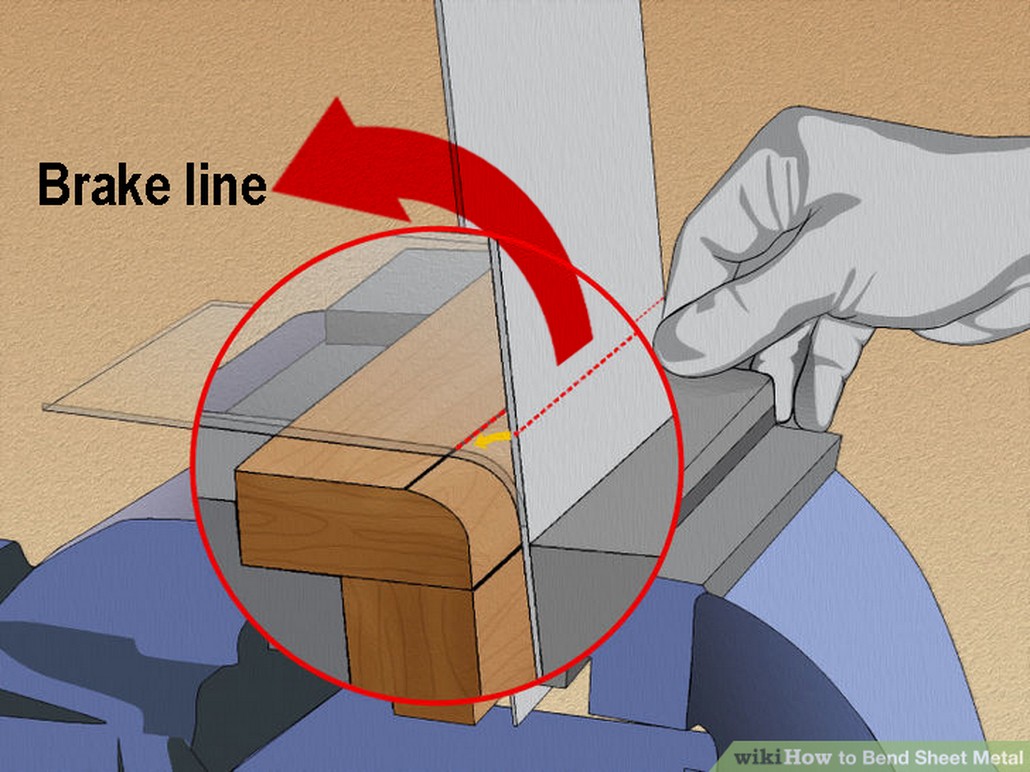

Brake line

A line, drawn on a sheet-metal layout, one bend radius from the bend tangent line. The sight line is placed so it is directly below the nose of the radius bar in a leaf brake. When the metal is clamped in this position, the bend tangent line is at the correct position for the beginning of the bend.
