STAB TRIM

توضیح فارسی

تصحیح کننده زاویه سکان افقی هواپیما ، در هواپیماهای بزرگ بدلیل بلند بودن طول هواپیما و اهمیت تعادل هواپیما حول محور عرضی و جلوگیری از محدودیت در توزیع بار در تمام طول هواپیما ؛ سکان افقی متحرک در نظر گرفته شده تا بسته به شرایط موجود تنظیم و تصحیح گردد و با پایین و یا بالا دادن دماغه هواپیما تعادل حول محور عرضی بهبود یابد

Description

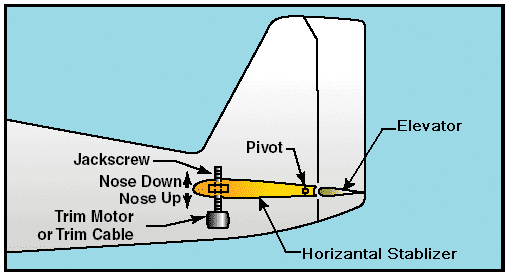

A trim devices for adjusting the moveable horizantal stablizers , Most airliners and transport aircraft feature a large, slow-moving trimmable tail plane which is combined with independently-moving elevators. The elevators are controlled by the pilot or autopilot and primarily serve to change the aircraft’s attitude, while the whole assembly is used to trim (maintaining horizontal static equilibrium) and stabilize the aircraft in the pitch axis.
