اتصالات در یک سیستم الکتریکی که شامل سیم های موجود درسیستم و اجزا دیگر (از قبیل بست ها و اتصالات سیم و غیره) برای یک سیستم پیچیده و ترکیبی است.
مفهوم EWIS به عنوان رویکردی الزامی و مهم در هواپیمایی برای تأکیدِ تمرکزِ دقیق بر روی سیم ها و سیم کشی سیستم ها در سراسر هواپیما بوجود آمده است .(هم در زمان ساخت هواپیما و هم در زمان بازرسیهای دوره ای).
اما اهمیت EWIS از کجا نشات گرفت:
در سال 1996، یک فروند هواپیمای 747 در هوا منفجر شد که نگرانی ها در مورد سیستم های سیم کشی در هواپیماها را مورد توجه عموم قرار داد. علت احتمالی این حادثه مشتعل شدن بخارات قابل اشتعال در مخزن سوخت بوده که احتمالاً به دلیل خرابی سیمکشی و ایجاد جرقه در مخزن سوخت بوده است.
دو سال بعد، یک هواپیمای MD-11 در اقیانوس اطلس سقوط کرد و اگرچه علت دقیق آن مشخص نشد، اما یافتهها حاکی از آن است که احتمالاً یک قوس الکتریکی باعث شروع آتش سوزی و سپس سقوط هواپیما شده است.
بررسی این حوادث و بررسی های بعدی سایر هواپیماها نشان دهنده یک سری مشکلات رایج بود و سازمان های ذیصلاح را بر آن داشت تا استانداردها و رویکردهای دقیق تری را برای اهمیت سیستم های سیم کشی ایجاد کنند.

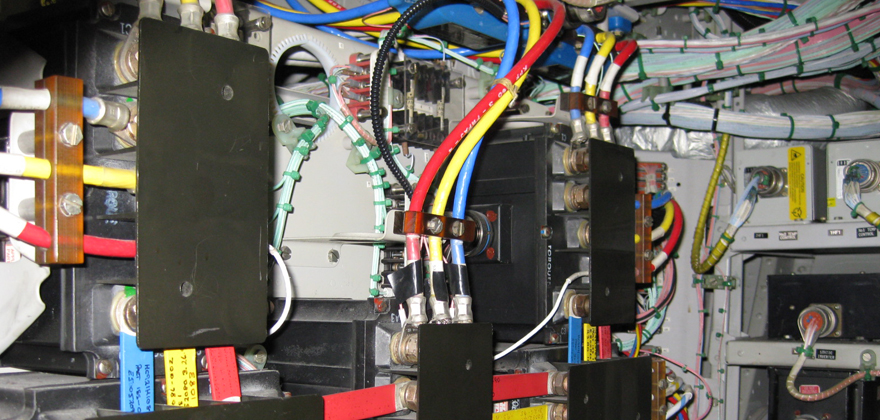

Electrical wiring interconnect system is the wiring system and components (such and bundle clamps, wire splices, etc.) for a complex system.in the aviation EWIS was done to emphasize the focus on the actual wires and wiring of the systems throughout aircraft.
But where did the significance of EWIS originate:
In 1996, a 747 airplane exploded mid-air which brought concerns about wiring systems in airplanes to the public's attention. The probable cause of the accident was the ignition of flammable vapors in the fuel tank, likely due to a wiring failure that let a spark enter the fuel tank. Two years later, an MD-11 airplane crashed into the Atlantic Ocean, and although the exact cause could not be determined, findings suggest that wire arcing occurred in the area where the fire possibly originated. The investigation of these incidents and the subsequent investigations of other aircraft showed a series of common problems and prompted competent organizations to establish standards and more precise approaches to the importance of wiring systems.
