Dimension Line

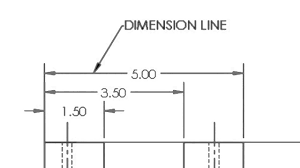

A light solid line on a machine drawing. A dimension line is drawn between extension lines that indicate the beginning and the end of a dimension. A dimension line has an arrowhead at each end and a break in its middle where the dimension and the tolerance are written.
